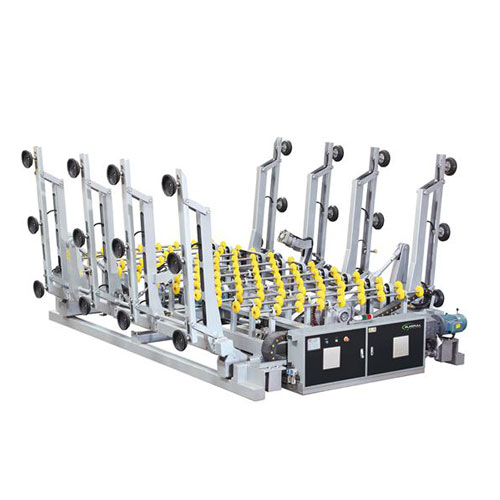

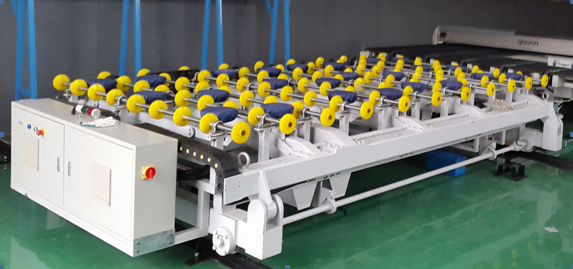

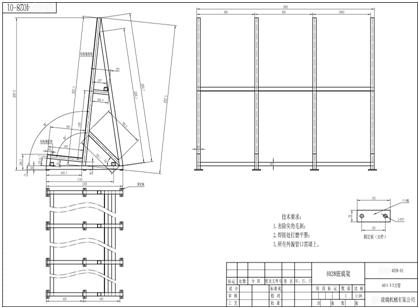

Product name:GM-SP4028 automatic loading table

Service hotline

1. The basic working principle:

Mainly used for automatic glass slices. Put the glass in the specified location, take after sign the slices chuck up automatically at glass after adsorption and be placed in Taiwan transfer roller, automatic glass to the cutting machine on the host.


2.Equipment part:

Is mainly composed of frame mechanism, turnover mechanism, lifting mechanism, X axis sucker, walking mechanism, Y axis moving mechanism, conveying mechanism, vacuum and air control system, electrical control system of eight parts.


3. The equipment of institutions:

Framework is mainly composed of institution, flip agencies, chuck hoisting mechanism, travel mechanism X axis, Y axis motion mechanism, transmission organization, vacuum and pneumatic, electric control system Eight most of gas control systemthe equipment adjustment and maintenance manual ways, each action can be separate Complete, also can be used for normal work. Given slices signal (manual, automatic) after turning, the system work, make motor driven mechanical reverse institutions Disc arm turn up, and achieve the same Angle flip stop and glass, before moving motor making suckers, at the top near the suction cup detection switch when in contact with the glass, Stop forward motor. When vacuum system, work began to adsorption glass sucker, when the vacuum pressure switch to set pressure, adjustable according to the thickness of the glass vacuum pump stops, the chuck of the scale Linkage driven by motor lift up the glass, in this location about stopping for a few seconds later, make sure that single piece of glass suction, motor driven mechanical turnover mechanism make the glass countertops transmit mesa, telescopic rod system landed the suction cup and glass at the same time, rapid release chuck compressed air blowing glass, start to send glass to drive mechanism Machine on the front to stop signal point. Then the whole frame of mobile automatically find zero after stop, wait for cutting machine signal, can with glass cutting machine with speed

Piece sent to the cutting table, glass is sent out automatically after work cycle on a piece of program, this machine is used according to the required thickness of the glass arbitrarily selected location into slices.


4. The machine configuration:

1), flip sprocket chain: high precision wear-resisting reinforced;

2), transfer roller: import PU material;

3), vacuum suction cup: Ding Qing glue material adsorption structure (double);

4), flip reducer: chengbang(Taiwan).

5), the X axis reducer: chengbang(Taiwan).

6), Y reducer: thunis (taizhou);

7)Chuck hoisting speed reducer(sankai)

8)Vacuum valve(Shanghai)


5. Electrical configuration:

1), PLC controller:(Taiwan);

2), frequency converter, in (Taiwan);

3), touch screen display control (Taiwan);

4), contactor, Schneider (France);

5), the circuit breaker: Schneider (France);

6), intermediate relay: Schneider (France);

7), switching power supply: (Taiwan);

8), control transformers: Chint (hangzhou);

9), main control vacuum electromagnetic valve: the DE guest (Taiwan);

10), photoelectric switch (OMRON Japan)

11),proximity switch, (OMRON Japan)


6. Technicalparameters:

1), upper and lower size range: minimum size: 1500 * 1200 mm;(single side);On the biggest piece of size: 4200 * 2800 mm; absorption depth: 750 mm can make the necessary improvements according to the needs of the customer);

2), and slice thickness: 3 ~ 19 mm;

3), the X axis walking speed: 5 ~ 25 m/min (adjustable);

4), Y walking speed: 8 ~ 12 m/min (adjustable);

5), transmission speed: 5-25 m/min (adjustable);

6), the number of turning arm: four arm;

7), the number of single arm chuck: three;

8), the reverse: double, single, transfer, can choose according to customer's requirement.

9), the cycle: 50 s or less (every one station to increase 10 s);

10), installed power: AC380V / 50 hz (special circumstances) can be adjusted according to customer's requirements;

11), the total power installation: 5-10kw;

12), compressed air: 0.6-0.8 kpa.

13), vacuum pressure: -50 ~ -99Kpa (adjustable according to the thickness of the glass);

14), mesa height: 900 + 20 mm;

15), shape size: 4500 * 2950 * 2950 + 20 mm.


7. Technicaldescription:

1), the alarm system: with reliable vacuum detection device, to appear abnormal situation can be automatic alarm and display, can be used to control when abnormal and confirmed The vacuum alarm when abnormal and guarantee under the glass in the vacuum state; When the emergency stop to ensure the vacuum suction cups in a glass in the vacuum state, avoid glass damage due to abnormal downtime;

2), the operation pattern: the device has automatic mode and manual mode two functions for selection, operation convenient and intuitive;

3), the operating interface: LCD touch-screen display, Chinese or English Language display, convenient operation;

4) the main frame, and steel structure all use international quality rectangular pipe compound links and bolt assembly;Rectangular steel tube thickness:over3-8mm

5), the machine materials after aging treatment, the surface with special cleaning process to remove surface pitting and table oxide layer, the bottom spray advanced zinc yellow polyester paint, surface spraying

Senior automotive paint (and this model can according to customer's color) painting process: oil removal debarring machine framework - polishing ball toss rust - grinding polishing - spray anti-rust primer - semi-finished products

- dust do third time two times be bored with child - polishing putty - sand polishing - intermediate - spraying cars - ethylene oxide primer spraying senior acrylic paint - spray the clear coat Paint (customers can specify the color paint) - finished products;
