Product name:GM-YD20 Shape Edging & Beveling Machine

Service hotline

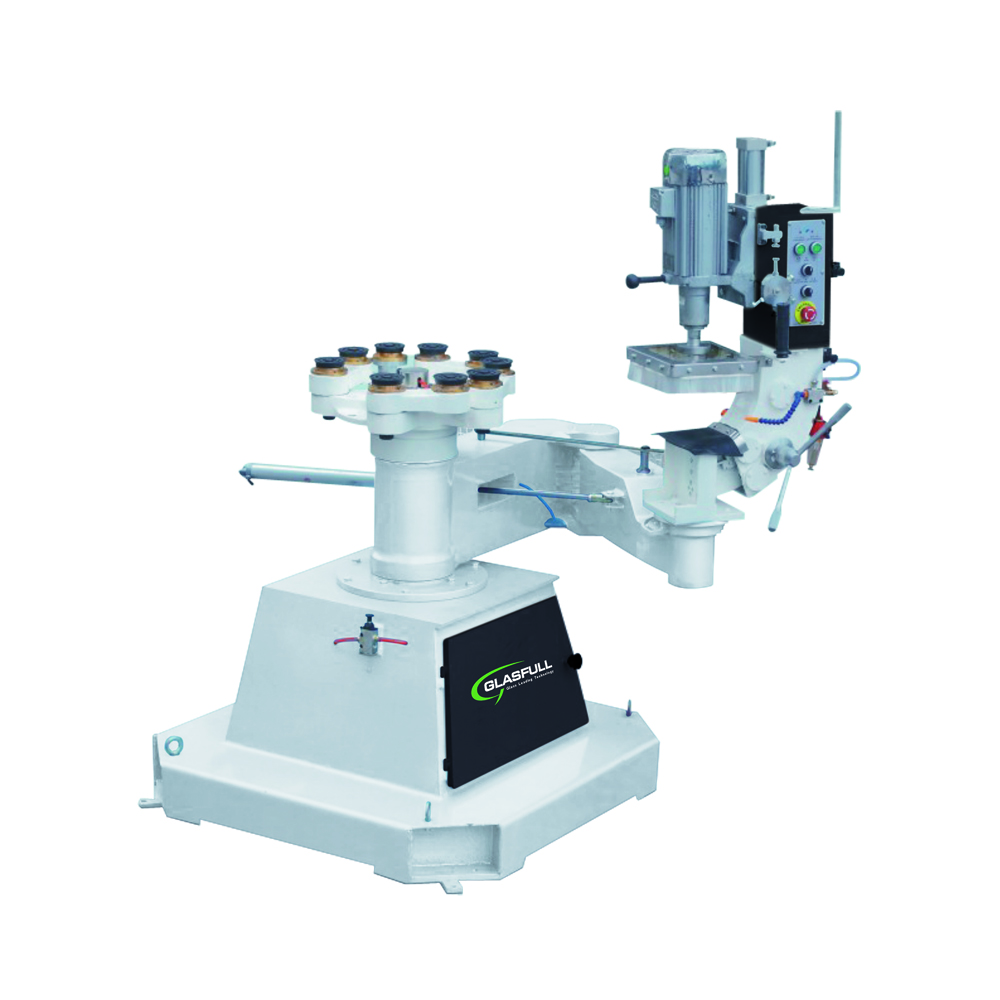

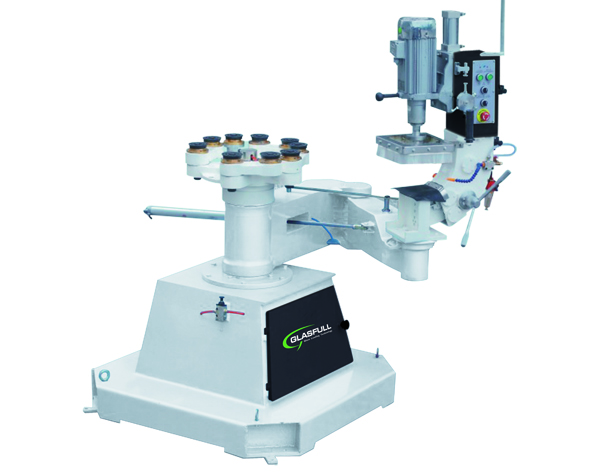

  GM-YD20 Shape Edging & Beveling Machine

GM-YD20 Shape Edging & Beveling Machine


  GM-YD20 Shape edge and beveling machine is applicable to the processing shape edge and bevel of flat glass.The glass is adsorbed onto a vacuum sucker,rotary or single drive an independet satellite disc rotation of the drive motor, the machine can be shaped flat glass processing diameter 700-2100mm or 100-700mm.Rotating speed can be arbitrary regulation at work. This machine uses cylinder can also be semi automatic grinding to simple shape shaped glass.When grinding peripheries,install three kinds of tools,rough grinding wheel,fine grinding wheel and polishing wheel.When grinding shape beveling,bowl shaped grinding wheel is installed,the grinding head tilted back , adjusting the wheel slope angel,using wheel outer surface single side grind the glass.

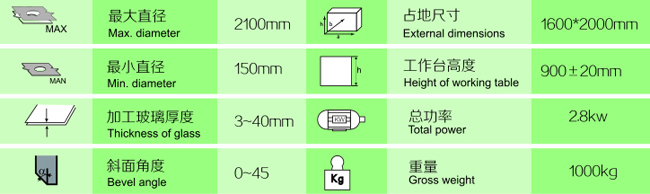

Technial parameters
