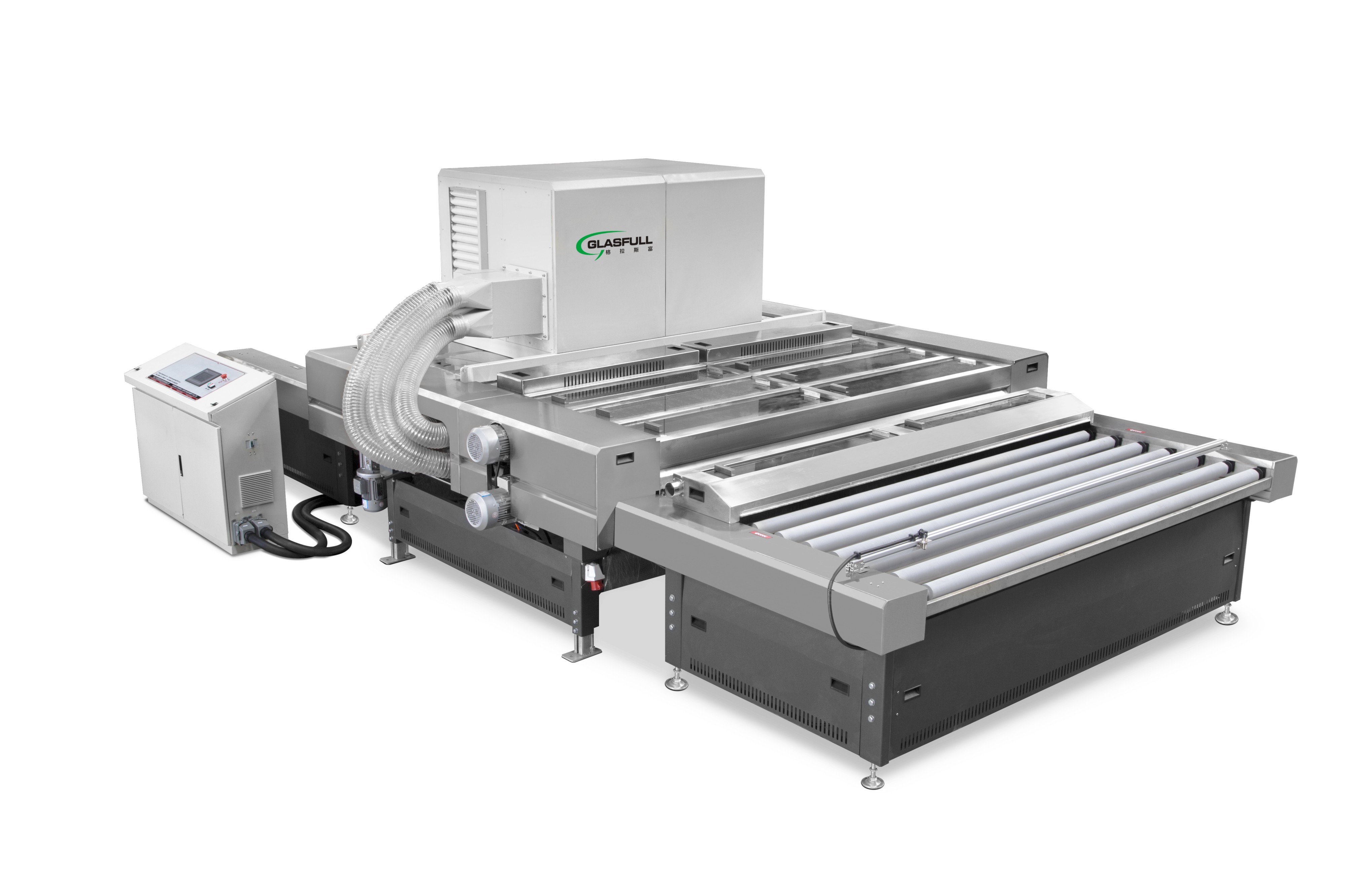

产品名称:GM-WX2500S玻璃清洗机Glass Horizontal Washing Machine

服务热线
13922269859 13726110693

玻璃清洗干燥机可对平板玻璃进行清洗和风干,玻璃厚度和清洗速度可调,且数字显示,清洗部与水接触部位钣金全部为不绣钢材料制造,主传动为齿轮传动、变频调速、数字显示,清洗部毛刷辊转动分别由上、下两组电机独立皮带传动,转动速度平稳,使用寿命长。三对毛刷配置(洗Low-E类选用:上部毛刷配置二根硬毛刷带气缸提升,加一根软毛刷,可选LOW-E玻璃、普通镀膜和阳光镀膜玻璃,洗镀膜玻璃时二根硬毛刷可气缸提升,不损伤镀膜表面)GM-WX2500上清洗部分可以升起350mm。GM-LX2000是一种立式玻璃清洗机,可与立式磨边机或立式钻铣机等组合生产线。

GM-WX Horizontal Glass Washing Machine Series,  Suitable for cleaning and drying flat glass, Main drive includes gear drive, frequency control of motor speed and digital display. Brush roller drive of washing part is drove by upper and lower motors with separate belt, which has smooth speed and long service life. Metal plates of washing part and parts which contacts with water are made of stainless steel. Three pairs of brushes (Φ150mm) deployment. (Low-E Glass:The upper brushes deploy two hard brushes which can make cylinder rise up and one soft brush, which can wash low-e glass, ordinary reflective glass and sunshine reflective glass. When washing reflective glass, two hard brushes can make cylinder rise up to avoid damaging surface of reflective glass).GWX2500C type upper brushes can be lift to 350mm. GM-LX2000 is a kind of vertical type washing machine,suitable connect with vertical edging or vertical drilling machines.

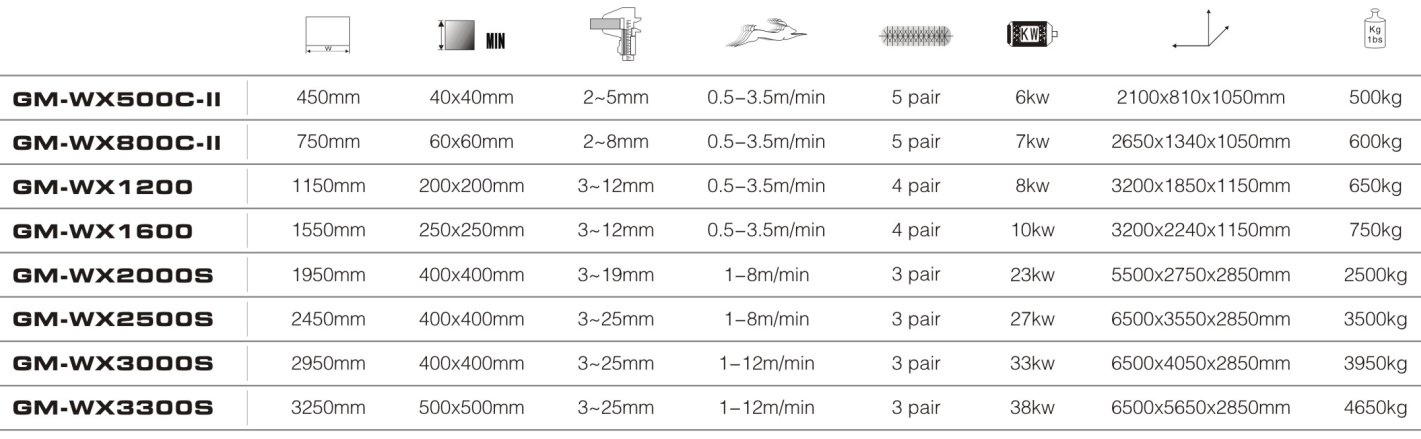

技术参数Technial parameters
